Spar Pent Concrete Garage 140

FREE INSTALLATION. Width from 8' to 18'. Length from 14'6" to 20'6". Single garages up to 14' wide include one up and over door. Double garages 16' or 18' wide include two up and over doors. All up and over doors are fully retractable and powder coated white. The attractive and durable pebbledash finish features colourful Canterbury Spar chippings. The roof sheets are brown plastisol coated galvanized steel with a choice of matching brown fascias or white plastisol coated fascias at the same price. The free installation service includes providing an internal mortar fillet. The all steel roof structure features welded steel trusses.

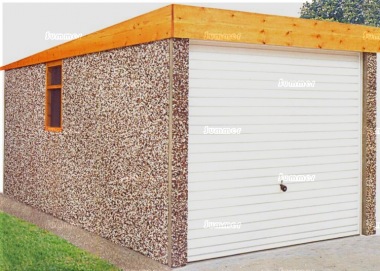

The first two pictures show an 8'0"x16'6" garage with optional Georgian up and over door. The third picture shows a close up view of the Canterbury Spar finish.

Prices fixed until Wednesday 29th February.

• All garage prices include VAT.
• Pay only 25% deposit when you order this garage by phone or online.
• ORDER BY PHONE: You can pay with a debit or credit card. To order phone us free on 0800 9777 828 seven days a week. You can pay in full or pay a deposit only. You can pay a minimum 25% deposit with order or pay a bigger deposit if you prefer.
• ORDER ONLINE: You can pay with a credit or debit card or you can pay with the latest password protected online payment systems such as Verified by VISA and Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 25% deposit with order or pay a bigger deposit if you prefer.
• LOW RATE FINANCE: We offer incredibly low rates. For example, if you borrow £1000 for 12 months you repay only £1100.04. The minimum deposit is only 10% and the minimum loan is only £500! Its also easy to apply with no intrusive questions. Click here for more details
• METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode and Google Checkout. We do not accept American Express or Diners Club cards at present.

• Delivery is normally between 4 and 6 weeks after order.
• Our prices for concrete buildings include all delivery charges
• Our concrete buildings are delivered and installed on the same day.
• Your building is delivered by specialist installers in dedicated vehicles. They can unload your building quickly and without assistance.
• The delivery vehicle is a large lorry, typically around 33' or 10m long and 9' or 2.7m wide. It is unloaded from the side, normally onto the verge at the front of the property. A suitable parking area is required within 50 yards (46 metres) of the base for your building.
• The heavy concrete panels are carried from the lorry on trolleys. This requires a clear route over a solid and hard surface between the lorry parking area and the base for your building. Concrete, tarmac, slabs and brickweave are normally suitable surfaces for the trolleys. Soil, shingle, steep slopes and flights of stairs may cause a problem.
• The minimum clear width required for the trolleys is 2'9" or 840mm wide.
• With advance warning we can normally overcome most access restrictions, often at no extra cost. Please contact us if you have any concerns regarding the access at your site.

• All prices include FREE INSTALLATION by specialist trained staff.
• Your concrete building will be delivered and installed on the same day by prior appointment with you.

What's this? CLICK HERE for more info about our BASE LAYING SERVICE
Wrong area? CLICK HERE to enter the first half of YOUR POSTCODE

We can build a base for this building in the IP18 area:

Our low cost base preparation service is available in your area. Benefits include lower prices and payment on completion. All base prices are supplied and built with materials and labour included. Site clearance and removal of old buildings is available. All prices include VAT if applicable.

• e.g. £346 to supply and build a concrete base 6' x 8'
• e.g. £528 to supply and build a concrete base 8' x 10'
• e.g. £792 to supply and build a concrete base 10' x 12'
• e.g. £1320 to supply and build a concrete base 10' x 20'
• Old buildings removed if required. CLICK HERE to see more info and full PRICE LIST

• Free delivery and installation
• Free mortar fillet to the internal walls
• 10 year structural guarantee
• External pebbledash finish with Canterbury Spar chippings
• Galvanized bolts
• Pent roof sloping from front to back with a shallow pitch
• Welded steel roof trusses with black paint finish
• Brown plastisol coated galvanized steel roof sheets with no drip anti-condensation coating inside
• Preservative treated timber fascias
• Fully retractable galvanized steel up and over door with white powder coated finish
• Up and over door height 6'6" (1981mm)
• Minimum up and over door clearance height 6'1" (1854mm)
• Free non opening joinery window 2' wide x 3' high (610mm x 915mm)
• Garages 8' wide feature a central 7' (2134mm) wide up and over door
• Garages 9' wide feature a central 7' (2134mm) wide up and over door
• Garages 10' wide feature a central 8' (2438mm) wide up and over door
• Garages 12' wide feature an offset 8' (2438mm) wide up and over door
• Garages 14' wide feature an offset 8' (2438mm) wide up and over door
• Garages 16' wide feature two 7' (2134mm) wide up and over doors
• Garages 18' wide feature two 8' (2438mm) wide up and over doors
• Garages with offset doors include a front wall section approximately 4' wide which can be located to either side of the door
• Up and over doors 7' (2134mm) wide provide 6'6" (1981mm) wide clear opening width
• Up and over doors 8' (2438mm) wide provide 7'6" (2286mm) wide clear opening width
• Up and over doors 14' (4267mm) wide provide 13'6" (4114mm) wide clear opening width
• Standard eaves height 6'6" (1981mm)
• External height at the front varies according to length from 7'5" (2250mm) to 8'2" (2500mm)

CONCRETE GARAGES - THE BENEFITS: Many of our timber garages and log cabins are solid, well made and likely to last a long time with very little maintenance. However, nothing can match the solidity and durability of a sectional concrete garage. If you choose PVCu windows and gables your garage will be amost completely maintenance free. Garages rank highly as one of the most desirable home improvements and with extra durability built in concrete garages rank even higher.

SPAR FINISH: The heavy duty concrete panels are 67mm thick and steel reinforced. The panels are finished outside with colourful Canterbury Spar chippings and inside with a smooth vibrated finish inside to ensure a neat appearance inside and out. The panels are full height and up to 24” wide so the number of joins is reduced to a minimum. The smooth internal finish is attractive in itself but it is also easy to paint which provides a stunning internal finish.

FULLY RETRACTABLE UP AND OVER DOORS: Our up and over doors are fully retractable, which is neater and stronger than the canopy doors supplied with most garages. Although the door projects by up to 3'1” (940mm) during opening there is no projection once the door is open. The performance is smoother and more reliable than a canopy door with no wire cables to maintain. Instead the door features heavy duty springs and the wheels are firmly retained in rigid metal channels. An anti-fall safeguard ensures that even if a spring fails the door is held in position. The design ensures no steel to steel contact and a spring buffer stop ensures that the door comes to a safe stop when fully open. An internal handle and lock are included. The two point locking system includes a ground level locking point each side. With the wheels holding the top of the door in place our standard door provides similar security to a four point locking canopy door. All doors are powder coated white.

POWDER COATED STEEL DOOR FRAMES: All of our up and over doors include a galvanized steel door frame made with heavy duty box section steel. Our steel door frames are more durable and reliable than the timber sub frames supplied by others. Timber subframes are also subject to seasonal movement and require frequent maintenance. All of our steel door frames are galvanised with a white powder coated finish.

ANTI-CONDENSATION ROOF SHEETS: The roof is clad with heavy duty box profile galvanized steel roof sheets. Externally the sheets are finished with a tough dark brown plastisol coating. The underside is finished with a no drip anti-condensation coating. An absorbent fibrous mat is applied to the underside of the steel roof sheets which absorbs condensation. The fibrous mat absorbs up to 1 litre of water per square metre which evaporates when the temperature rises. It is a permanent rubber based moisture barrier which is applied to the metal sheet during manufacture. The anti-condensation coating is a light grey colour with an attractive textured finish.

INTERNAL MORTAR FILLET: The price includes laying a mortar fillet on the inside of your building between the concrete panels and the base to prevent water ingress under the walls. This important finishing touch is not always included with other concrete buildings.

GARAGE SIZES AND BASE SIZES: Concrete garages require a substantial concrete base which should be slightly larger than the garage. The ideal size is 3" or 75mm bigger than the garage on all sides. To calculate the correct base size for any garage just add 6" or 150mm to the external garage length and 6" or 150mm to the external garage length. The external garage sizes are listed in the SIZES & PRICES chart. The internal width is approximately 5" or 125mm smaller than the external width. The internal length is approximately 9" or 225mm smaller than the external length.

LENGTH AND WIDTH: In the SIZES & PRICES chart the first dimension listed is the width and the second dimension is the length. The width refers to the front door wall. The length refers to the side wall. All sizes quoted are the external garage sizes and do not include any roof overhang, unless stated otherwise.

• Choice of standard horizontally ribbed up and over door or Georgian style
• Personnel door with white powder coated galvanized steel and vertically ribbed design - the door can be positioned almost anywhere to suit your needs.
• Choice of window and door positions - windows and personnel doors can be positioned almost anywhere to suit your needs
• Opening windows
• Additional windows - windows can be positioned anywhere to suit your needs
• Available with no windows for improved security at no additional cost
• Black half round PVCu guttering wih a downpipe fitted to the rear wall

POSITION OF WINDOWS AND DOORS: If you like you can order your garage without specifying the door and window positions - if so, we will contact you to discuss your requirements. If you prefer, you can order your garage online and use our Design Plan to specify where you want the windows and doors to be located. On the Design Plan each wall section has a unique reference number. Simply choose which wall sections you want to include a window or personnel door. For structural reasons it is not possible to position windows or doors in the corner panels. In addition, there should be at least one full height concrete panel between each door or window. The concrete panels are each 2ft wide. Personnel doors are two concrete panels wide regardless of door width.
